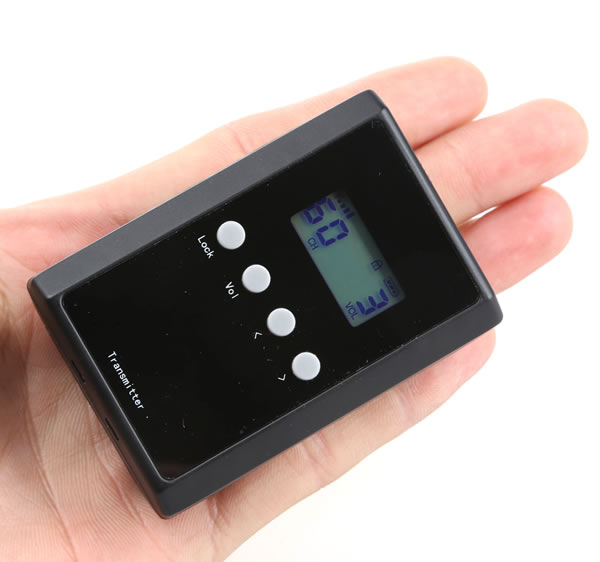

Wireless Guide System WAT01-AA
Accessories sold separately
DescriptionSpecifications

For those who like the clear 50-100 channels of WAT01 but prefer to use replaceable AA batteries, WAT01-AA is a good choice.

With the same channels and frequencies as WAT01, it can be powered by disposable AA batteries, or rechargeable Ni-MH AA batteries. 2 x AA battery can last 40 hours for the receivers. Multi-port charging cases are also available.

It is the smallest guide system with AA batteries on the world market.

The wireless guide system WAT01-AA has the following features:

  • Limitless wireless receivers for each transmitter
  • Stationary transmitter available with MP3 playing function and a two-way sound mixing function
  • Advanced microchips ensures very little noises
  • Compact size without sacrificing sound quality
  • Receivers have an automatic turn-off function after 20 minutes of no signal
  • Over 150 meters range from the transmitter to receivers
  • 50-100 independent channels, up to 20 work simultaneously at the same location
  • Easy to use “drop in” multi-unit battery charger available
Paramater Value
Wave band 665-690MHz
Output Power 10dBm
Frequency response 20-16kHz
Sensitivity -115dBm
Deviation +/- 100k
Modulation FM, PLL
Distance 150m (open ground)
S/N ratio >60db
Input Microphone/audio
Output Earphone/audio
Number of channels 50-100 (adjustable)
Powr supply 2x AA batteries
Dimension 75 x 50 x 25 mm
Weight 45g (without batteries)
